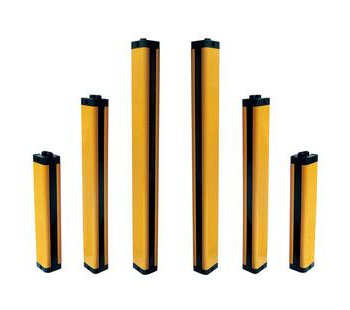

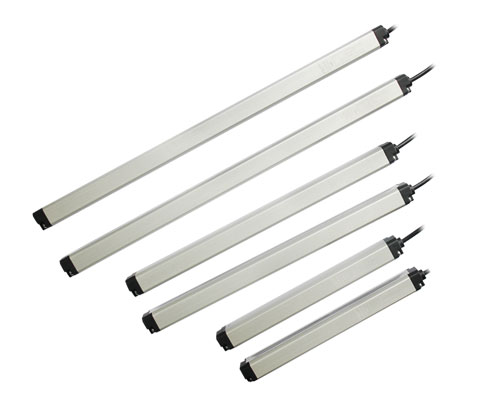

检测类型
Test type | 透过型
Transmissive type |
型号
Model | NPN集电极开路输出(标准型)
NPN open-collector output(Standard type) | FGSM20-08
FGSM20-12
FGSM20-16 | FGSM20-20
FGSM20-24
FGSM20-28 | FGSM20-30
FGSM20-36
FGSM20-40 | FGSM20-44
FGSM20-48 | FGSM40-02
FGSM40-04
FGSM40-06
FGSM40-08 | FGSM40-10
FGSM40-12
FGSM40-14 | FGSM40-16
FGSM40-18
FGSM40-20 | FGSM40-22
FGSM40-24 |
PNP集电极开路输出
PNPopen-collector output | FGSM20-08P
FGSM20-12P
FGSM20-16P | FGSM20-20P
FGSM20-24P
FGSM20-28P | FGSM20-30P
FGSM20-36P
FGSM20-40P | FGSM20-44P
FGSM20-48P | FGSM40-02P
FGSM40-04P
FGSM40-06P
FGSM40-08P | FGSM40-10P
FGSM40-12P
FGSM40-14P | FGSM40-16P
FGSM40-18P
FGSM40-20P | FGSM40-22P
FGSM40-24P |
| 外型尺寸Overall dimension |  | Fiber optic space:20mm |
|  | Fiber optic space:40mm |
|
| Scanning distance/检测距离 | 0.2-2M(usually use 2m) |
|
| Scanning object/检测物理学体 | Nontransparent object Min.dimension:φ20mm | Nontransparent object Min.dimension:φ40mm |
| Optic axis width/光轴间距 | 20mm | 40mm |
| Optic axis/光轴数 | 8~48PCS | 4~24PCS |
| Scanning width/检测宽度 | 140~940MM | 120~920MM |
| Angle of direction/角度指向范围 | Scanning distance: ±3°C above 2m |
| Power voltage/电源电压 | 12-24VDC 10% ±(Ripple P-P:Max.10%) |
| Protective circuit/保护电路 | Circuit reverse connecting protection |
| Current consunmption/电流损耗 | Transmitter:max.80Am,receiver:max.80Am |
| Control output/控制输出 | NPN:Load voltage Max.30VDC load current max.100mA Residual volatage max.1VDCPNP:output voltage Max.100mA load current min.(Power supply-2.5)VDC |
| Operating mode/动作模式 | Light ON only |
| Short circuit protection/短路保护 | Built-in |
| Response time/响应时间 | Min.12ms |
| Light source/光源 | Infrared light |
| Simultaneous mode/同步方式 | Simultaneous mode |
| Self-diagnostic/自诊断 | Light source inspection,transmitter/receiver luminescent circuit and output circuit |
